Description
For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit.
Specifications:
| California Proposition 65 | WARNING: Cancer & Reproductive Harm and image |
| Description_ASC | TIRE SIZE – 37/12.50R17 Wheel – 17X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 37/12.50R18 Wheel – 18X9 W/4 3/4″ BS W/MINOR TRIMMING; TIRE SIZE – 37/13.50R20 Wheel – 20X9 W/5″ BS W/MINOR TRIMMING; NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 16VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.; 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276. |
| Description_ASC | TIRE SIZE-37/12.50R17 WHEEL-17X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/12.50R18 WHEEL-18X9 W/4 3/4in. BS W/MINOR TRIMMING; TIRE SIZE-37/13.50R20 WHEEL-20X9 W/5in. BS W/MINOR TRIMMING; 3. NON DUALLY MODELS ONLY.; 42. WILL NOT FIT GAS MOTORS.; 163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.; 165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512; DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.; 175. VEHICLES W/FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276. |
| Description_DEF | Suspension Lift Kit |
| Description_DES | 2.25DLSS N/R |
| Description_DES | 6″ RAD ARM SYS W/COILS & DLSS SHKS 17-21 FORD F250/F350 4WD DIESEL |
| Description_DES | 6″ RADIUS ARM BOX |
| Description_DES | 6″ REAR BOX KIT |
| Description_DES | Radius Arm Lift System |
| Description_DES | SD 6″ 4WD COIL BOX BLACK |
| Description_EXT | 6″ RAD ARM SYS W/COILS & DLSS SHKS 17-21 FORD F250/F350 4WD DIESEL. |
| Description_EXT | Block Kit; Rear; For 6 in. Lift; For PN[K2217M/K2217DL/K2218DL/K2243DL/K2219M/K2219DL/K2244DL/K2232DL/K2256DL/K2257/K2257M/K2257DL/K2256M/K2255M/K2255/K2217/K2218/K2219]; |
| Description_EXT | Coil Spring Kit; Black; Front; For 6 in. Lift; For PN[K2011/K2050/K2052/K2054/K2156/K2156M/K2157/K2157M/K2155/K2155M/K2132/K2131/K2130/K2217M/K2217DL/K2218M/K2219M/K2219DL/K2010]; |
| Description_EXT | Component Box; For 6 in. Lift; For PN[K2218M/K2218DL/K2243DL/K2256DL/K2256M/K2218/K2231DL/K2256]; |
| Description_EXT | Dirt Logic 2.25 Shock Absorber; For PN[K2144DL/K2206DL/K2205DL/K2158DL/K2159DL/K2217DL/K2218DL/K2243DL/K2219DL/K2244DL/K2232DL/K2215DL/K2216DL/K2253DL/K2204DL]; Stainless Steel; |
| Description_EXT | Dirt Logic 2.25 Shock Absorber; Stainless Steel; For PN[K2217DL/K2218DL/K2219DL/K2256DL/K2257DL/K2255DL/K2130DL/K2131DL/K2132DL/K2050DL/K2052DL/K2054DL/K20101DL/K20102DL]; |
| Description_EXT | Radius Arm Lift System; 6 In. Lift; Incl. Dirt Logic Shocks; |
| Description_FAB | Adjustable Alignment Cam Allows Caster Adjustment |
| Description_FAB | Dimple Die Side Plates |
| Description_FAB | Fully Tubular Structure |
| Description_FAB | Patent Pending Radius Arms |
| Description_FAB | Unsurpassed Strength And Performance |
| Description_INV | Fabtech-6″ RAD ARM SYS W/COI |
| Description_LAB | Proposition 65 |
| Description_MKT | For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2 diameter heavy wall links feature race style 1 Uniballs for superior strength. Thick 1/4 steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and U-Bolt kit. |
| Description_MKT | Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6” replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit. This kit includes front and rear Dirt Logic Shocks. |
| Description_SHO | 6″ RAD ARM SYS W/COI |
| Description_SHO | LftKt-Suspw/Shock |
| height | 15.0 |
| length | 45.5 |
| Lift/Drop Height | 6 in. |
| LTL | N |

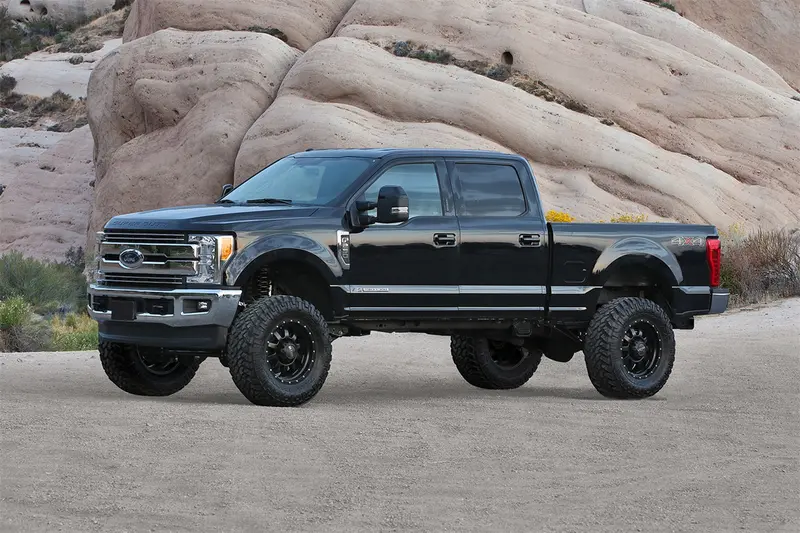

| Title | Fabtech 6″ RAD ARM SYS W/COILS & DLSS SHKS 17-21 FORD F250/F350 4WD DIESEL |
| WARNING CA Proposition 65 | Yes |
| WARNING CA Proposition 65 Message | Warning: Cancer and Reproductive Harm-www.P65Warnings.ca.gov. |
| weight | 279.1 |
| width | 45.0 |
